Customized Products
We manufacture accessories according to customer requirements.
Please also contact us if you are looking for special accessories as well as performance extensions and optimizations that are not available within the standard accessories.
Examples of our customized products can be found here.
Length extension of the 10774A to 7 meters
Extension of the 10774A for straightness measurements with the laser interferometer. The high accuracy achieved with the original 10774A optics up to 3 m can be extended to a length of up to 7 m with our optics. If a Wollaston prism from an already acquired 10774A is available, it can be used for the production of a suitable reflector, so that only the costs for the additional custom manufacturing are incurred.
Lightweight double retroreflector
For linear and angular measurements on small machines, the optical components can already represent a significant load, which may affect the measurement results. This weight load can be reduced by using lightweight optical components.

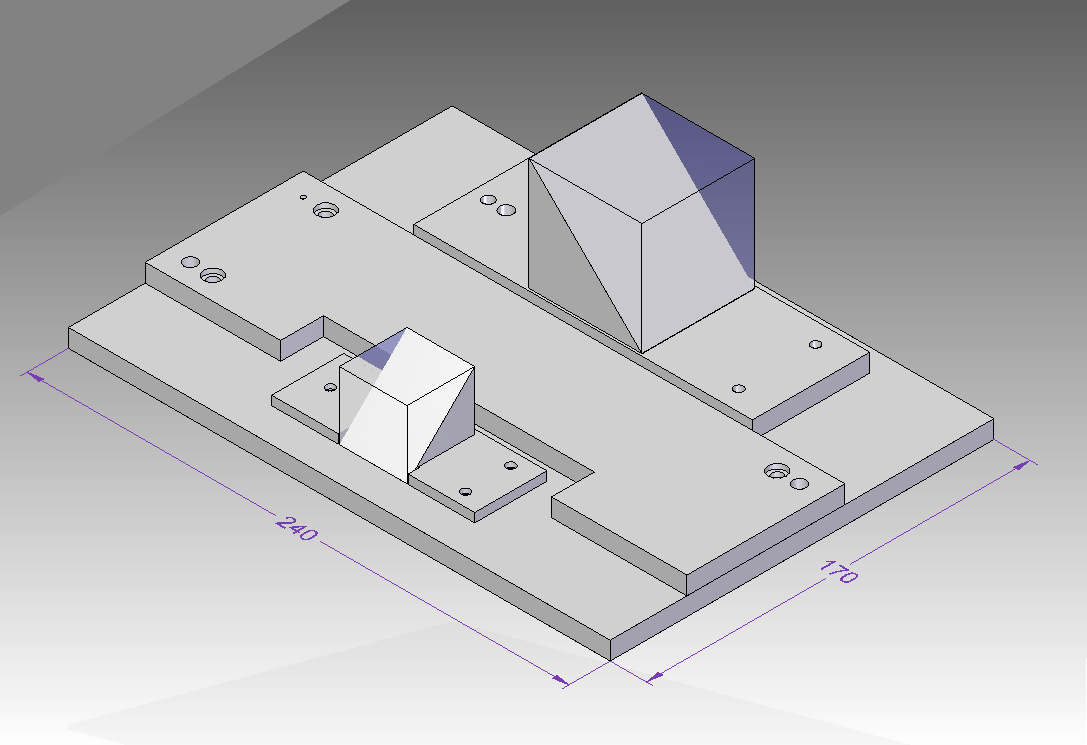

Z deflection unit
Device to facilitate straightness measurements on the machines to be tested. Mainly used for the measurement of vertical axes in order to verify the maximum possible travel distances.
